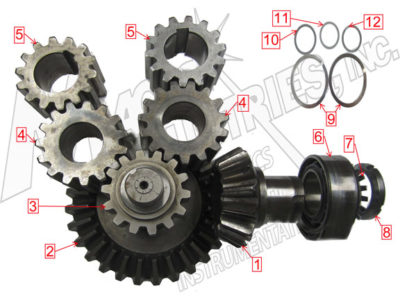

Transmission Gears

Clear

Description

#

Magic #

OEM #

Part Description

# Req.

1

ST8  41271734 30160623 Gear, bevel

1

2

ST8  41271733 30160622 Gear, crown wheel

1

3

ST8  41271732 30160621 Gear, transition

1

4

ST8  41271731 30160620 Gear, idler

2

5

ST8  41271720 30160619 Gear, spinner

2

6

ST8  41271844 30160733 Motor, trans., ST80

1

7

ST8  41271847-4 30160736-3 Retainer ring

1

8

ST8  41271848-4 30160737-3 Locking ring

1

9

ST8  227285-445 116174-334 Ret. Ring, spiral, trans. Case

2

10

ST8  41282445-4 30171334-3 Shim, input shaft metric

1

11

ST8  41282444-4 30171333-3 Shim, metric 0.3m main drive

1

12

ST8  41282444-2 30171333-1 Shim, metric 0.1mm main drive

1
