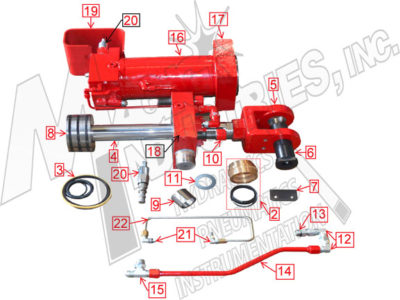

Torque Cylinder (Left)
Description
|
# |
Magic # |
OEM # |
Part Description |
# Req. |
|
1 |
ST8 41271795 | 30160684 | Assy., cyl., torque, LH |
1 |
|
2 |
ST8 41271795-5 | 30160684-4 | Kit, gland, torque cyl. |
1 |
|
3 |
ST8 41271796-TL | 30160685-SK | Kit, seals, torque cyl. |
1 |
|
4 |
ST8 41271795-1 | N/A | Rod, cylinder, torque cyl. |
1 |
|
5 |
ST8 41271795-30 | N/A | Clevis, rod, torque cyl. |
1 |
|
6 |
ST8 41271485 | 30160374 | Pin, clevis, torque cyl. |
1 |
|
7 |
ST8 41286901 | 30175890 | Lock plate, pin, torque cyl. |
1 |
|
8 |
ST8 41271795-3-3 | N/A | Piston, cyl., torque 4.5 bore |
1 |
|
9 |
ST8 41271795-9 | N/A | Race, trunnion repair, torque cyl. |
2 |
|
10 |
ST8 41271795-2 | N/A | Bolt, cyl., cap |
4 |
|
11 |
ST8 229947-39-57 | 118836-28-46 | Washer, thrust, fiber |
2 |
|
12 |
FIT 6500-08-08 | 56518-8-8-S | Fitting, 90° |
2 |
|
13 |
FIT 6400-08-08O | 56529-8-8-S | Fitting, straight |
3 |
|
14 |
ST8 41271795-3 | 30160684-2 | Assy., tubing, ½”, torque LH |
1 |
|
15 |
FIT 6803-8-8-8 | 30170812 | Fitting, TEE |
1 |
|
16 |
ST8 41271795-6 | 30160684-5 | Tube, 4.5” bore, LH |
1 |
|
17 |
ST8 41271795-18 | N/A | Flange, cyl. tube, R & L, torque cyl |
1 |
|
18 |
ST8 41271795-19 | N/A | Trunnion, cap, LH 4.5” |
1 |
|
19 |
ST8 41281015 | 30170904 | Guard, torque cyl., LH |
1 |
|
20 |
S/H-PS10-43A-O-N-22/3.5 | 30154047122N | Cartridge, torque cyl., 350 PSI |
1 |
|
21 |
FIT 6801-04-04NWO | 56519-4-4-S | Fitting 90° |
3 |
|
22 |
ST8 41283304 | 30172293 | Assy., tubing ¼”, torque LH |
1 |
