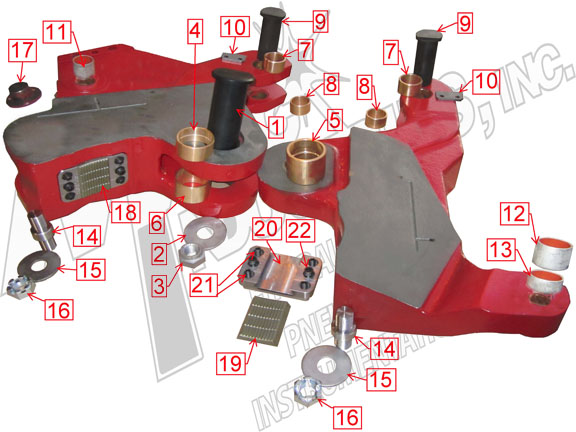

Lower Jaw Assembly

Clear

Description

#

Magic #

OEM #

Part Description

# Req.

1

ST8  41285228 30174117 Pin, hinge, lower

1

2

ST8  61933-X-D-6 50822-W-C-5 Washer, flat, lower hinge pin

1

3

ST8  62933-D 51822-C Nut, lock, lower hinge pin

1

4

ST8  41284718-2 30173607-1 Bushing, brass, height 1 ½”

1

5

ST8  41284718-6 30173607-5 Bushing, brass, height 3”

1

6

ST8  41284718-4 30173607-3 Bushing, brass, height 2 1/8”

1

7

ST8  41285235-4 30174124-3 Bushing, brass, height 1 ½”

2

8

ST8  41285235-3 30174124-2 Bushing, brass, height 1 7/16”

2

9

ST8  41285220 30174119 Pin, clamp cylinder, lower

2

10

ST8  41286901 30175890 Lock plate, clamp cylinder, pin

2

11

ST8  41283586-39-39 30172475-28-28 Bushing, garlock 1 ¾”

1

12

ST8  41283586-39-35 30172475-28-24 Bushing, garlock 1 ½”

1

13

ST8  41283586-39-27 30172475-28-16 Bushing, garlock 1”

1

14

ST8  41271474 30160363 Stud, guide, lower jaw

2

15

ST8  61931-X-D-6 50820-W-C-5 Washer, size 1 5/16”

1

16

ST8  61631-D 50520-C Nut, size 1 ¼” – 7

2

17

ST8  41285184-PLUG N/A Plug, lower jaw

1

18

ST8  41283130 30172029 Lower die assembly

2

19

ST8  41271493 30160382 Lower die

2

20

ST8  41271494 30160383 Lower die holder

2

21

ST8  61819-23-P-D 50708-12-OC Screw, set socket hd

8

22

ST8  61219-25-D 50108-14-C Screw, cap socket hd

4
